Hyundai HL900 series wheel loaders deliver maximum performance, productivity and efficiency, and have been proven to deliver as much as 5-percent greater productivity and 10-percent lower fuel consumption than previous models. Add a long list of Hyundai innovations – including an accurate onboard weighing system, unique bucket design for better load retention, and free use of Hyundai’s Hi-Mate remote management system for three years – and you’ll find the HL900 series offers unbeatable value.
504-464-0431

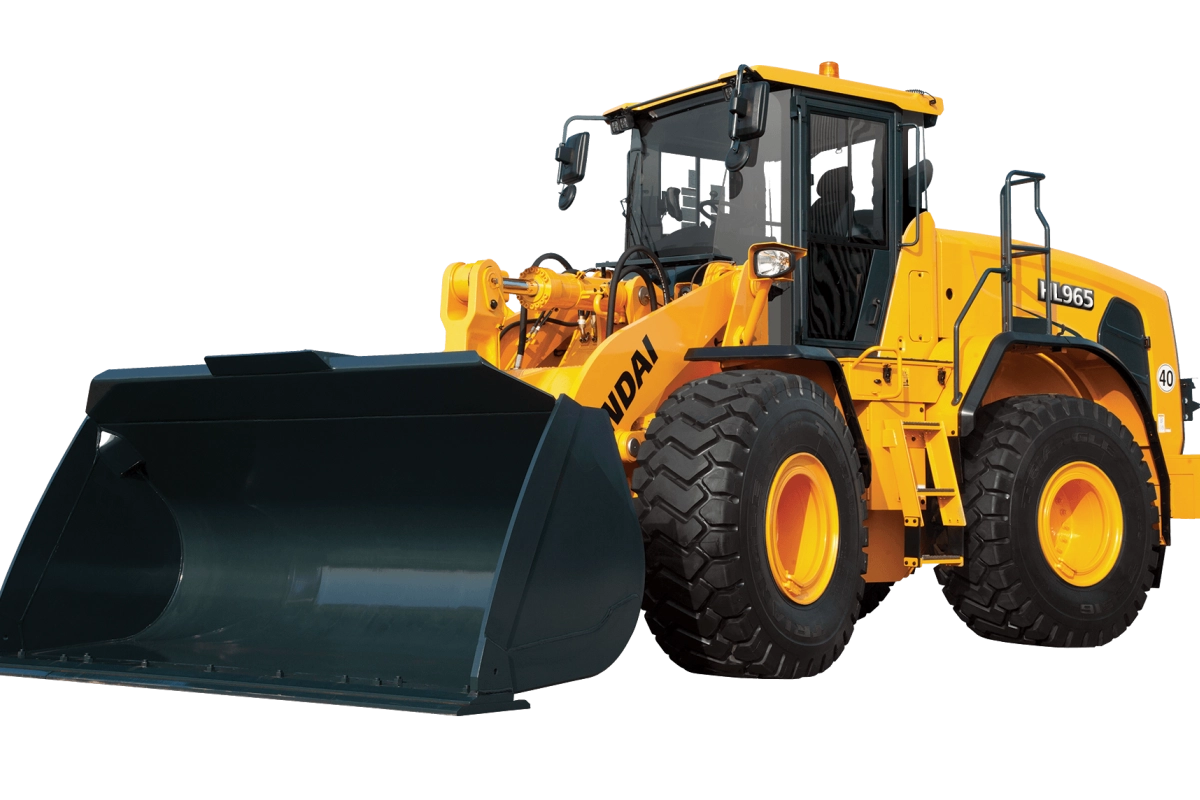

HL965
Net Power
269 HP @ 2,100 rpm
Operating Weight
45702
Standard Bucket
4.71 yd³
Overview
Performance
Performance
Cummins Performance Series Engine
Combined with the engineering and product design expertise of Hyundai, the Stage 5 Cummins Performance Series engines in the new A-Series machines will deliver substantial performance gains from a smaller, lighter power package. While Stage 5 guidelines do not apply in the USA, the Cummins Performance Series engines featured in A-Series also satisfy Tier 4 Final emissions control requirements. The Stage 5-compliant Cummins Performance Series engines integrate the newest after treatment system – the Single Module™ – with leading combustion and air-handling technology to be Exhaust Gas Recirculation (EGR)-free for a simpler installation with lower installed costs.
On-board Auto Weighing System
All Hyundai loaders come standard-equipped with an integrated onboard auto weighing system, accurate to within plus or minus 1%. The system can be operated in auto mode, whereby weight is displayed when the bucket is lifted to a specific height range (-5 deg to 15 deg), and weight is logged when the boom is lowered below -5 deg. Operators can also manually weigh loads with the press of a button. The system can display current weight, store up to three total daily weights (A, B, and C), and previous total daily weight.
Hi-Mate Remote Management System
Hi-Mate telematics system is provided free of charge for 3 years with all new Hyundai wheel loaders. Customers can remotely monitor performance, service and geo location data for their equipment at any time of the day. Hi-Mate saves time and money for the owner by promoting greater preventative.
Fuel Efficiency Package
Using the Eco Gauge function, operators can monitor fuel consumption in real time or review historical data. Displayed values include engine torque, fuel efficiency, average and total fuel consumed. Hourly and daily fuel consumption also are viewable through the menu. A-Series models now include a new Eco Report feature, Smart Power mode that can adjust engine RPM in heavy load work, and ICCO (Intelligent Clutch Cut Off) to save fuel without compromising on performance.
Performance
Optional Five-Speed Lockup Clutch
With the five-speed transmission and lockup clutch, operators can select the appropriate gear for their work conditions, thereby reducing fuel consumption. (Not available on HL940)
Hi-Mate Remote Management System
Hi-Mate telematics system is provided free of charge for 3 years with all new Hyundai wheel loaders. Customers can remotely monitor performance, service and geo location data for their equipment at any time of the day. Hi-Mate saves time and money for the owner by promoting greater preventative.
Eco Gauge
Using this function, the operator can monitor fuel consumption in real time or review historical data. Displayed values include engine torque, fuel efficiency, average and total fuel consumed. Hourly and daily fuel consumption also is viewable through the menu.

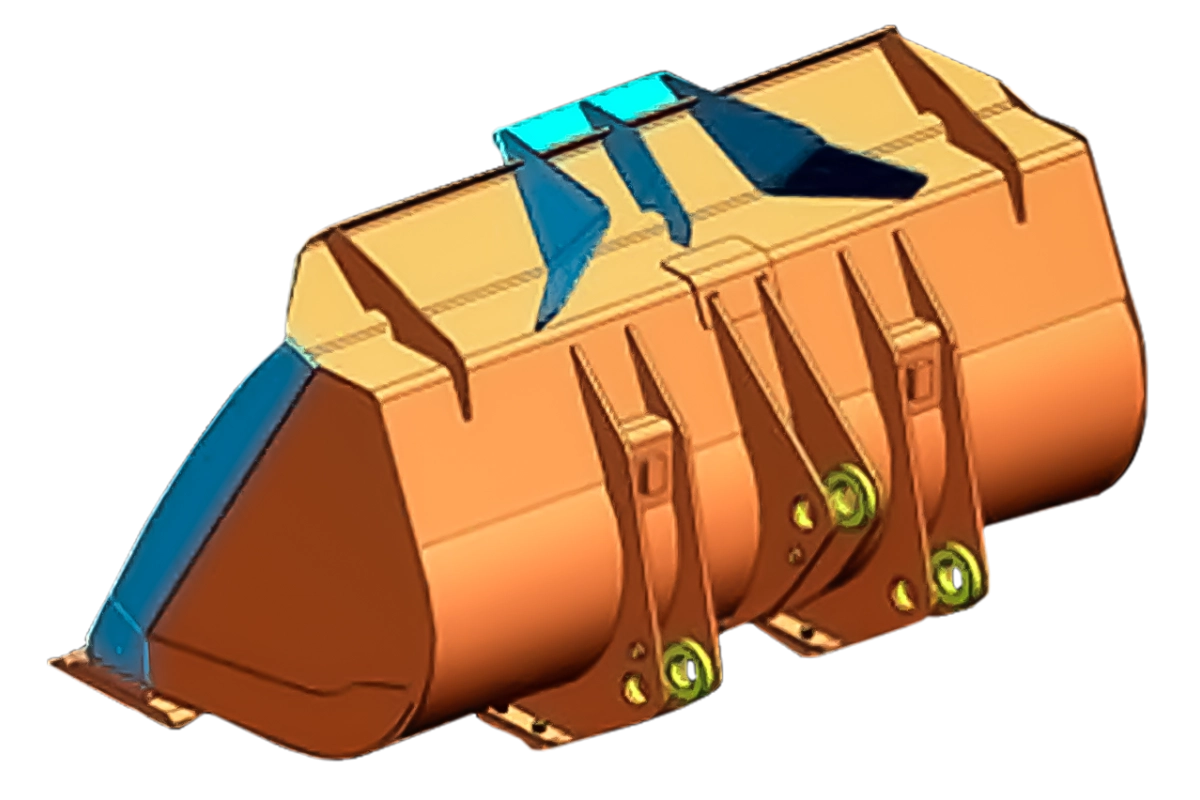

Improved Bucket Fill Factor
Hyundai’s improved bucket design features an innovative wider opening, curved side plates and enhanced spill guard to maximize bucket capacity and reduce material loss when traveling. Durability is also enhanced through the use of wear-resistant HARDOX 400 grade steel in key structural areas of the bucket.
Reliability
Reliability
Reliability
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HL960 is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
Durability
Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
Convenience
Convenience
Cab Comfort
For enhanced operator productivity, the cab features a heated air-ride seat that is fully customizable to each operator’s preference.
Audio System
The radio with MP3 functions, the integrated Bluetooth hands-free feature, and the built-in microphone allow for phone calls and for listening to music while in the field.
Heated Air-Ride Seat
The cab is equipped with features that enhance operator productivity, including a larger 7” (177 mm) interactive touch-screen monitor, optional fingertip controls, fully adjustable and heated air-ride seat, and centralized control switches for added convenience.
7″ Touchscreen Monitor
The 7 inch (177 mm) interactive touch-screen monitor on the HL900 series is large, easy to understand and visible during the day or night.
Serviceability
Serviceability

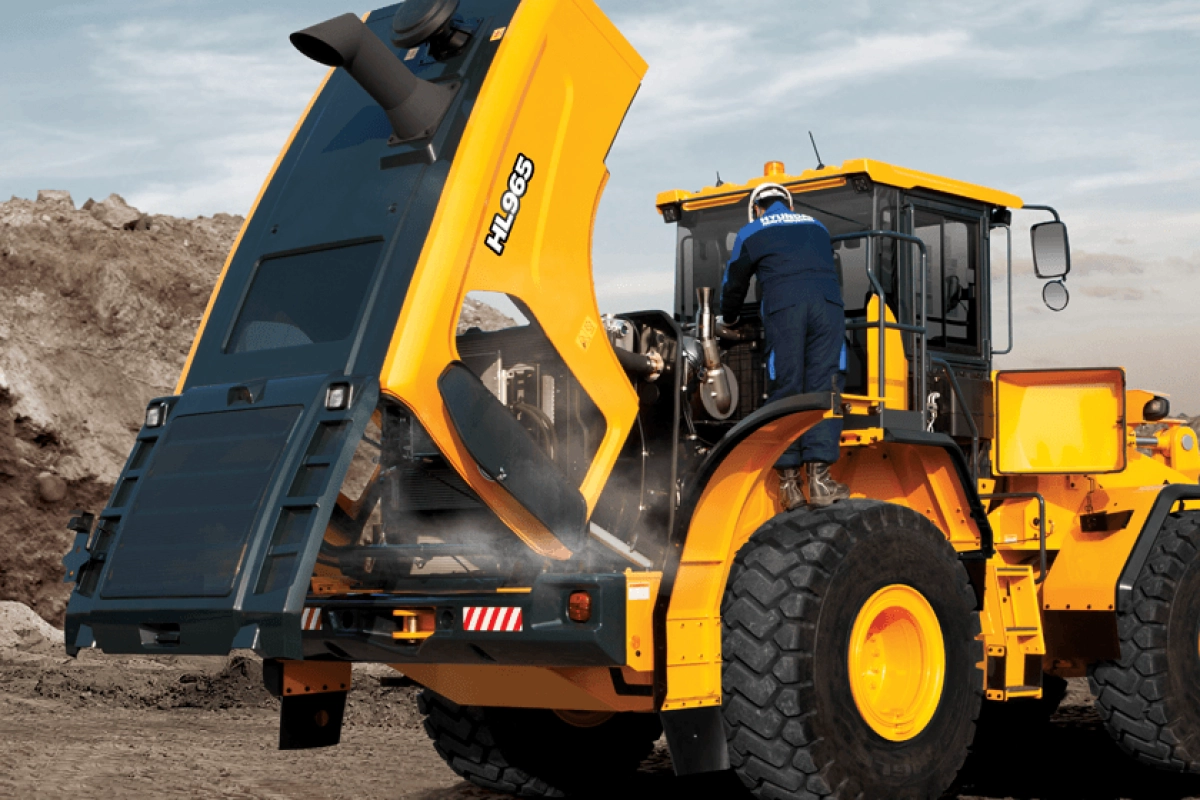

Tilt-Back Hood
The HL900 series has improved accessibility to the sealed engine room with a tilt-back hood to allow for easy cleaning and maintenance. The engine compartment was designed to prevent any possibility of fire due to contamination. The wide open access when the hood is open also enhances serviceability of the engine and cooling room. New serviceability features in the new A-Series include a Fully Openable Engine Hood.
Centralized and Easy Access to Service Points
All of the service points for the electric and hydraulic systems are located in easy-to-reach areas for optimum accessibility and maintenance.
Engine Air Filter with Increased Service Life
The HL900 series has a large-volume air cleaner, automatic dust ejector, and a three-stage turbo pre-cleaner (optional) to improve the replacement cycle and durability of replacement parts.
Initial Maintenance Interval
The initial replacement interval for engine oil and filter is extended to 250 hours to further reduce maintenance costs.
Safety
Safety
Integrated Rear View Camera
Hyundai’s HL985A is standard equipped with a full color, integrated rear view camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.

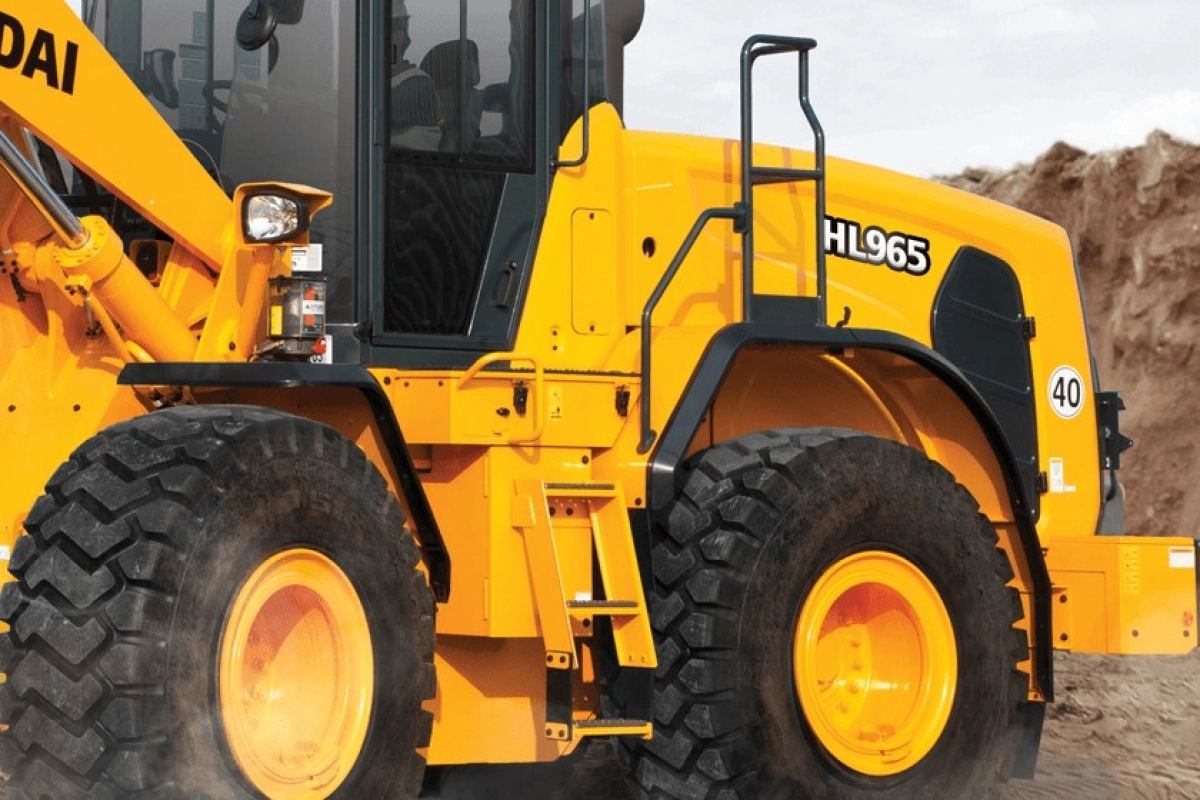

Steps & Handrails
Convenient hand rails coupled with access steps and ladders with anti-slip tread improve accessibility and reduce potential falls.
Cab Visibility
With emphasis on operator satisfaction in terms of noise, safety, and maintainability, Hyundai’s wheel loaders offer a comfortable cab space with low-vibration, reduced noise, and a superior safety design.
Speed & Safety Controls
For operator safety, HL900 wheel loaders have a travel speed limit setting. New A-Series models now include an Emergency Stop Button and Seat Belt Warning Alarm.
Specifications
| Engine Model | Cummins QSL9 |
|---|---|
| Net Power | 269 HP @ 2,100 rpm |
| Operating Weight | 45702 lb. |
| Bucket Capacity | 4.71 yd³ |
| Max Travel Speed | 24.9 mph |
| Bucket Breakout Force (Iso) | 38360 lb. |
| Configuration: Compact, Crawler, Wheeled, Speciality | Speciality |
