The Hyundai wheeled excavator product line includes three HW series models and one 9A series compact model to give you an edge in a wide range of on-road and off-road applications. These Tier 4-Final-compliant wheeled excavators deliver improved performance, increased fuel efficiency, superior travel speeds on the road, an enhanced cab and added safety features.
504-464-0431
HW170A CR
Net Power
170 HP @ 2,200 rpm
Operating Weight
42185
Standard Bucket
1.11 yd³
Overview
Performance
Performance
Variable Power Control
The HW series introduces variable power control with three power modes to ensure the highest performance in any operating environment. P (power mode) maximizes speed and power for heavy work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.
Attachment Flow Control
The HW series improves pump flow rate by giving the operator independent control of two pumps. It optimizes flow rate settings according to the attachment type (10 breaker types and 10 crusher types), which is ideal for various applications.
Fuel Efficiency
HW series excavators are designed with fuel efficient tier 4 final engines, hydraulic advancements and electronic improvements that improve overall fuel efficiency by as much as 10% compared to the previous series.
Cycle Time Improvement
Through a combination of innovative hydraulic system enhancements, Hyundai HW series excavators achieve faster cycle speeds than previous models, which increases productivity.
Reliability
Reliability & Durability
Reliability
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HW170A CR is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
Durability
Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
Convenience
Convenience
Advanced Audio System
The audio system includes an AM/FM radio, a USB-based MP3 player, an integrated Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.
Deluxe Operator’s Suspension Seat
The operator’s seat is designed to reduce fatigue and maximize productivity. Standard air suspension, selectable heat and fully adjustable seat, back, arm rests and control consoles provide a truly custom fit for any operator.
Intelligent 8″ Touchscreen Monitor
The 8-inch interactive touchscreen color display – with centralized switches – allows the operator to check and manage most features of machine operation, switches and diagnostics, all in one convenient location.
Innovative Haptic Control
Haptic control is a common technology found on luxury automobiles that makes selecting menus and adjusting settings easy. The haptic remote control uses vibrations and pulses to guide the operator through menu selections, enabling control of the accelerator, air conditioner, and all functions within the cluster for maximum convenience.
Serviceability
Serviceability
Easy Access to DEF System
The DEF/AdBlue® tank is installed next to the tool box. Its inlet is remotely located for easy access and convenient supply. A red lamp signal warns of overfill. The DEF/AdBlue® supply module is attached on the side of the fuel tank for easy maintenance and filter replacement.
Cab Air Filter Access
Cab air filter is conveniently accessible from ground level by way of a lockable door on the cab.

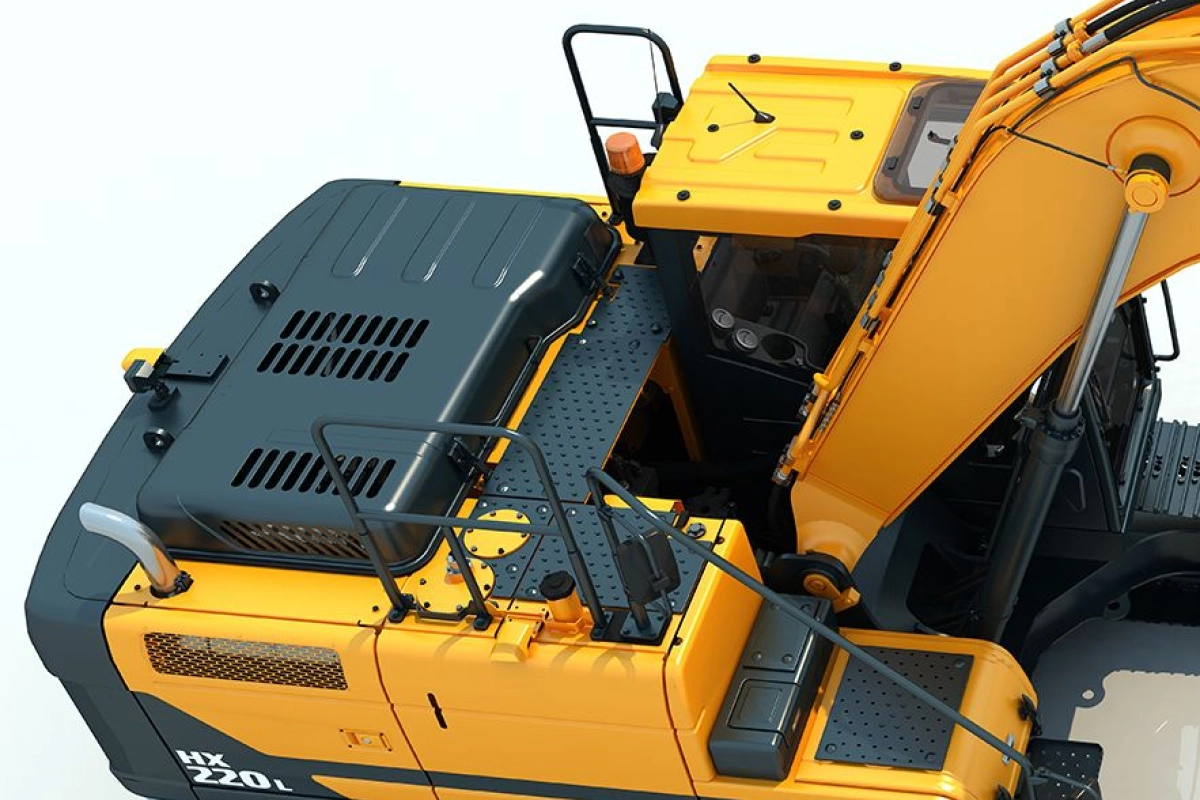

Ease of Maintenance
Engineered for convenience and efficiency, this excavator offers ground-level maintenance access, making routine checks and service tasks quick and hassle-free. Easily reachable filters facilitate smooth daily walk-around inspections, increasing uptime while effectively reducing owning and operating costs.
Stacked Cooler Design
HW series excavators feature aluminum open-core coolers mounted in a stacked configuration to improve air flow, enhance cooling efficiency and improve serviceability.
Safety
Safety
AAVM (All Around View Monitoring)
The Hyundai-exclusive AAVM video camera system provides the operator a 360-degree field of view on the monitor, which greatly contributes to work site safety. Part of this system includes IMOD (Intelligent Moving Object Detection), which alerts the operator to the presence of people or objects within a 5 meter (16 ft) range of operation.
Grab Rails & Guard Rails
Large upper grab rails coupled with left and right side guard rails facilitate access to the upper while reducing potential falls.
Anti-Slip Surface
Hyundai’s proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. The rubber tread surface is less abrasive on knees when kneeling and performing inspections.
Auto-Travel Alarm
Hyundai’s proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. The rubber tread surface is less abrasive on knees when kneeling and performing inspections.
Specifications
| Engine Model | Cummins B4.5 |
|---|---|
| Net Power | 170 HP @ 2,200 rpm |
| Operating Weight | 42185 lb. |
| Bucket Capacity | 1.11 yd³ |
| Max Travel Speed | 21.7 mph |
| Swing Speed | 9.5 mph |
| Max. Digging Depth | 18' 3.1" |
| Max. Digging Reach | 29' 7.1" |
| Tail Swing Radius | 6' 0" |
| Bucket Breakout Force (Iso) | 25895 lb. |
| Arm Crowd Force (Iso) | 15666 lb. |
| Configuration: Compact, Crawler, Wheeled, Speciality | Wheeled |
