The LH 24 M Industry impresses with its sturdy and compact design, which makes it particularly suitable for deployment in the area of recycling. With the latest engine and hydraulics technology, developed in-house by Liebherr, the main focus is on fuel efficiency while at the same time enhancing material handling performance. The attachment of the machine is available in a variety of versions and is thus always optimally matched to your respective application.
504-464-0431

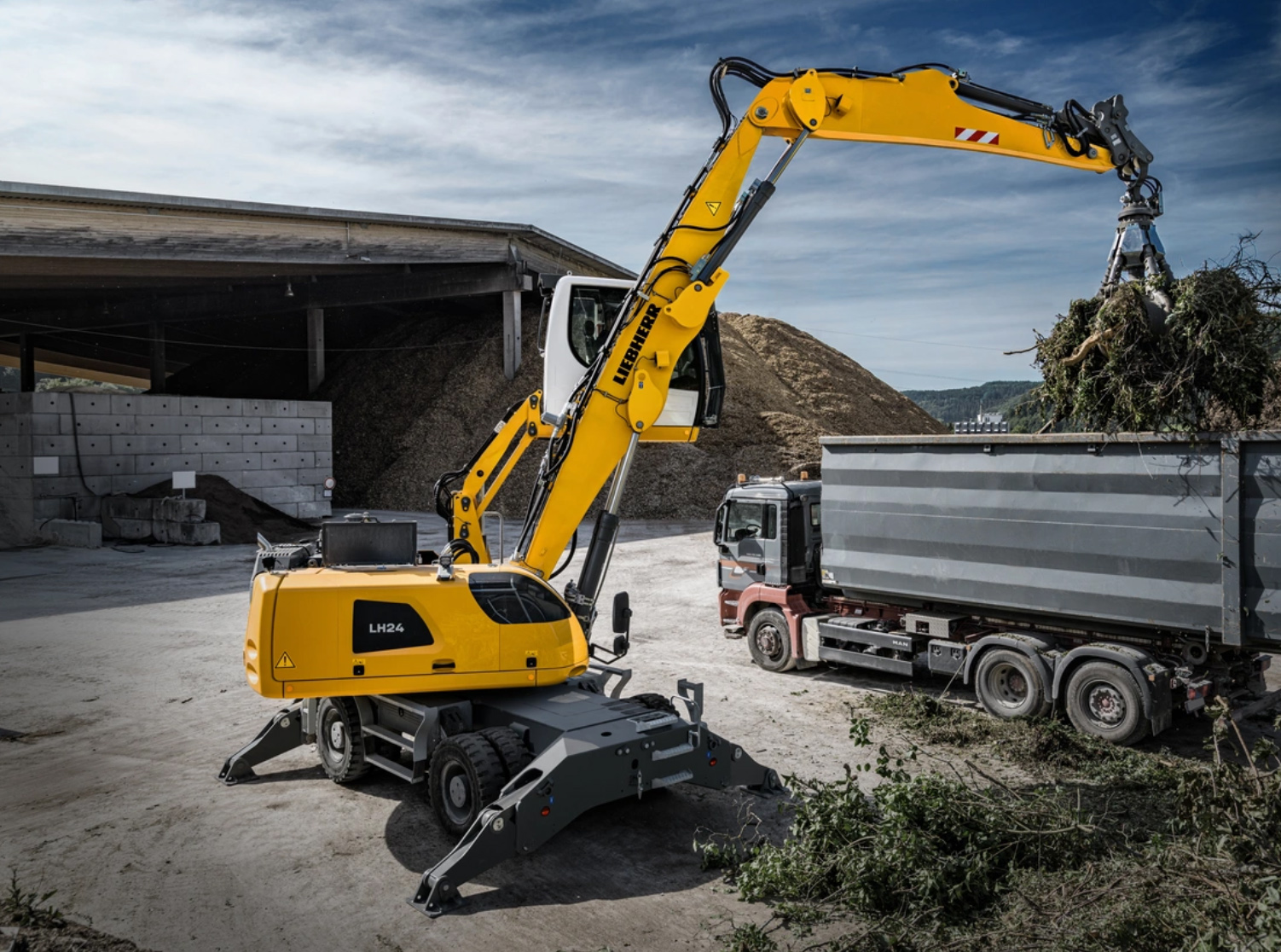

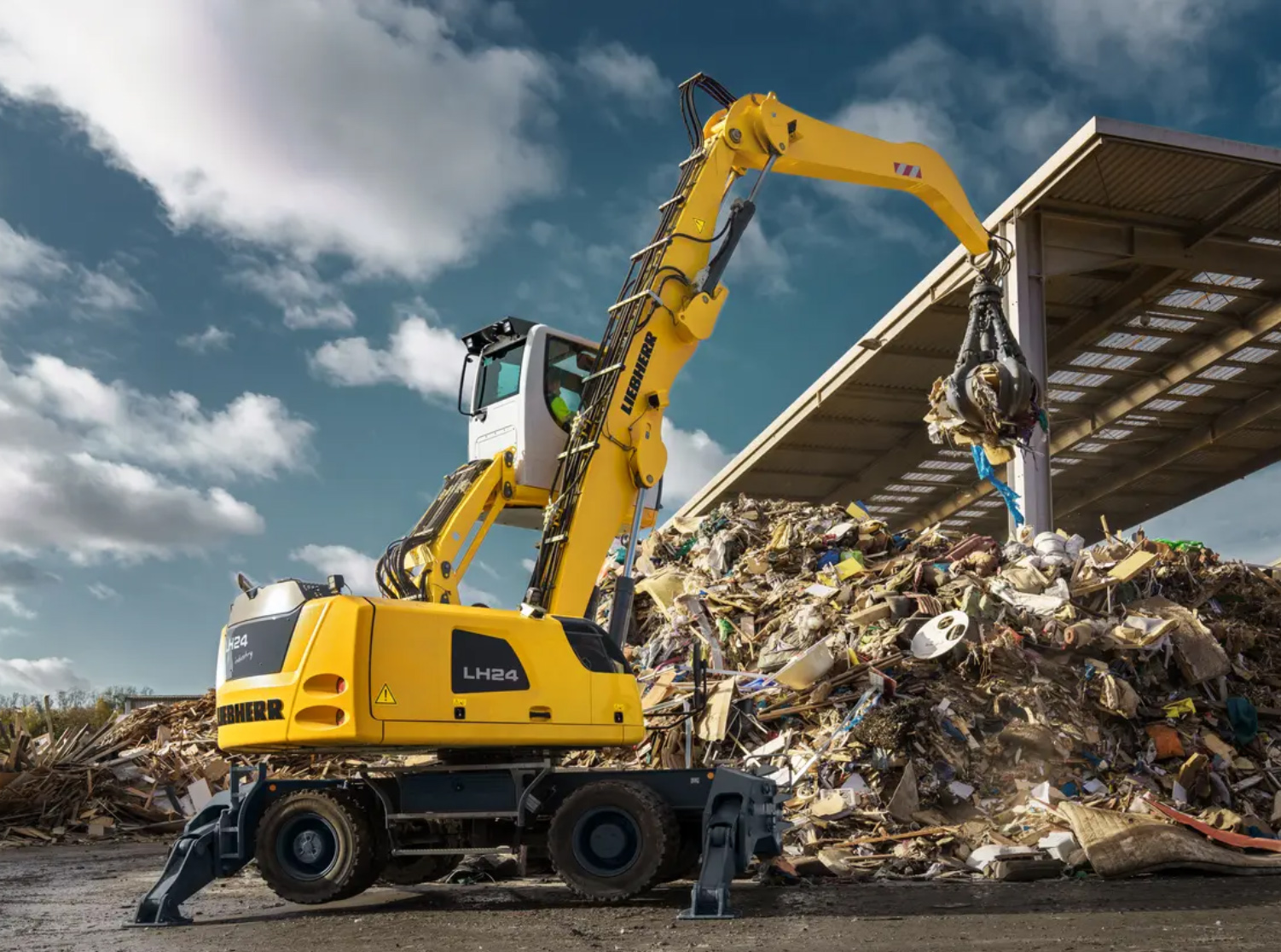

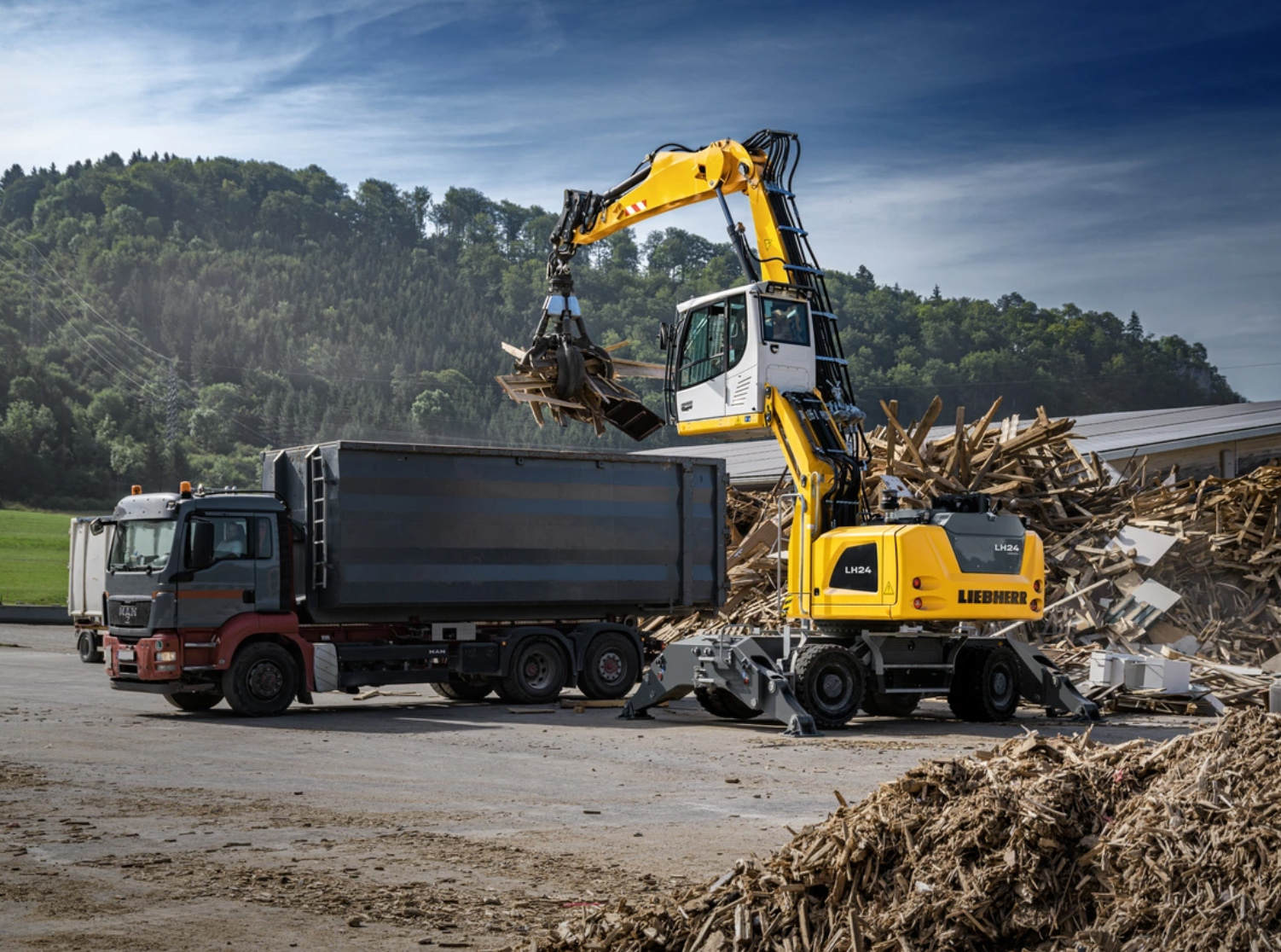

LH 24 M Industry Litronic
Operating Weight
50000
Overview
Specifications
| Operating Weight | 50000 lb. |
|---|---|
| Generation | 6 |
| Engine Output(ISO 9249) | 110 kW / 150 hp – 110 kW / 148 hp (SAEJ1349) |
| Emission Stage | Tier 4f |
| Avg. Consumption (per operating hour) | 2.51 gal/h |
| Configuration: Compact, Crawler, Wheeled, Speciality | Wheeled |
| Maximum Reach | 39' 4'' ft in |
| Grapple Capacity | 0.96 – 1.55 yd² (wood grab size) |
| Multi-tine grab capacity | 0.52 – 0.78 yd³ |
| Shells for loose material capacity | 1.31 – 2.35 yd³ |
| Sorting grab capacity | 0.65 – 1.44 yd³ |
