LH 40 M Industry Litronic

Overview

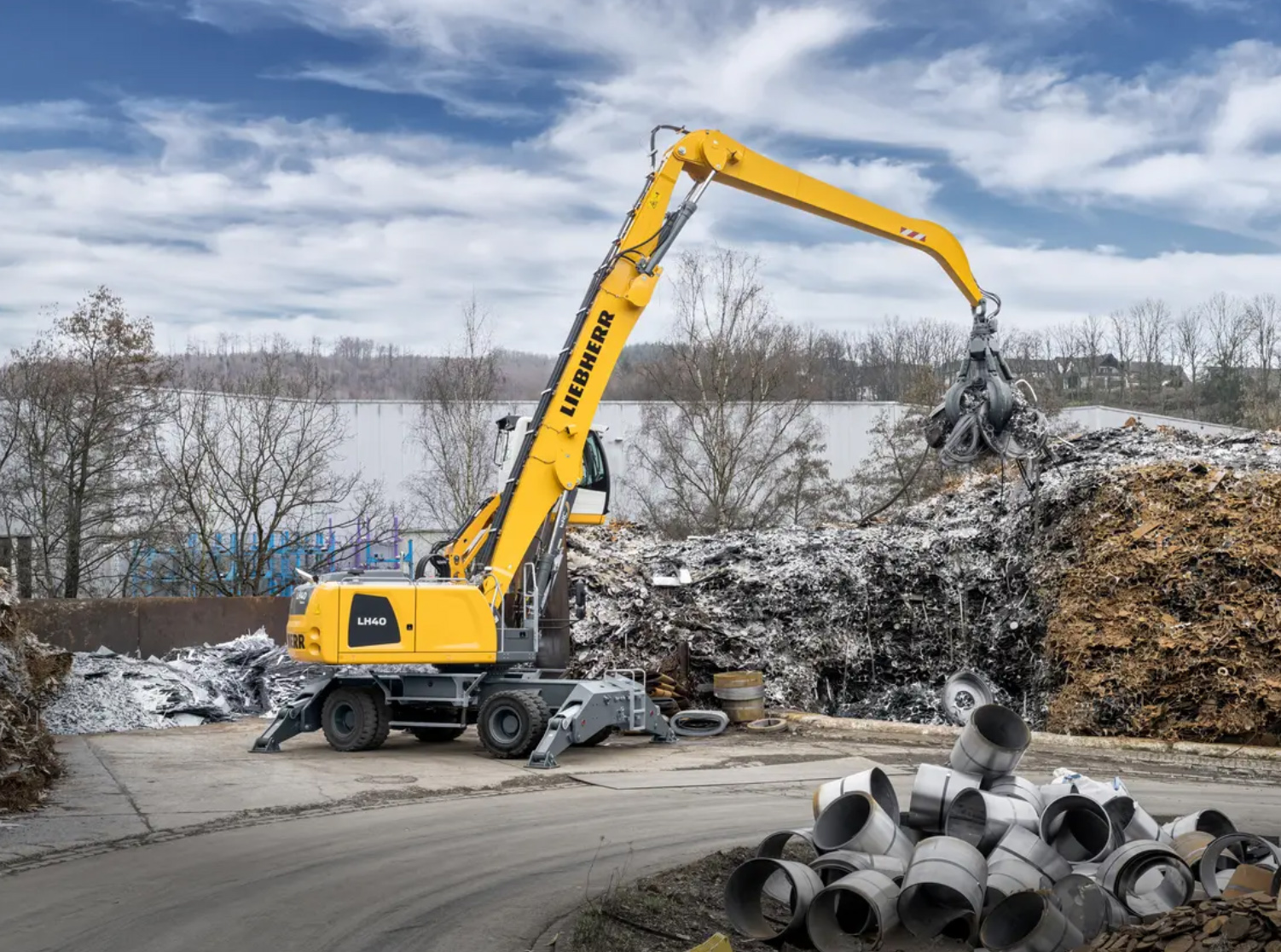

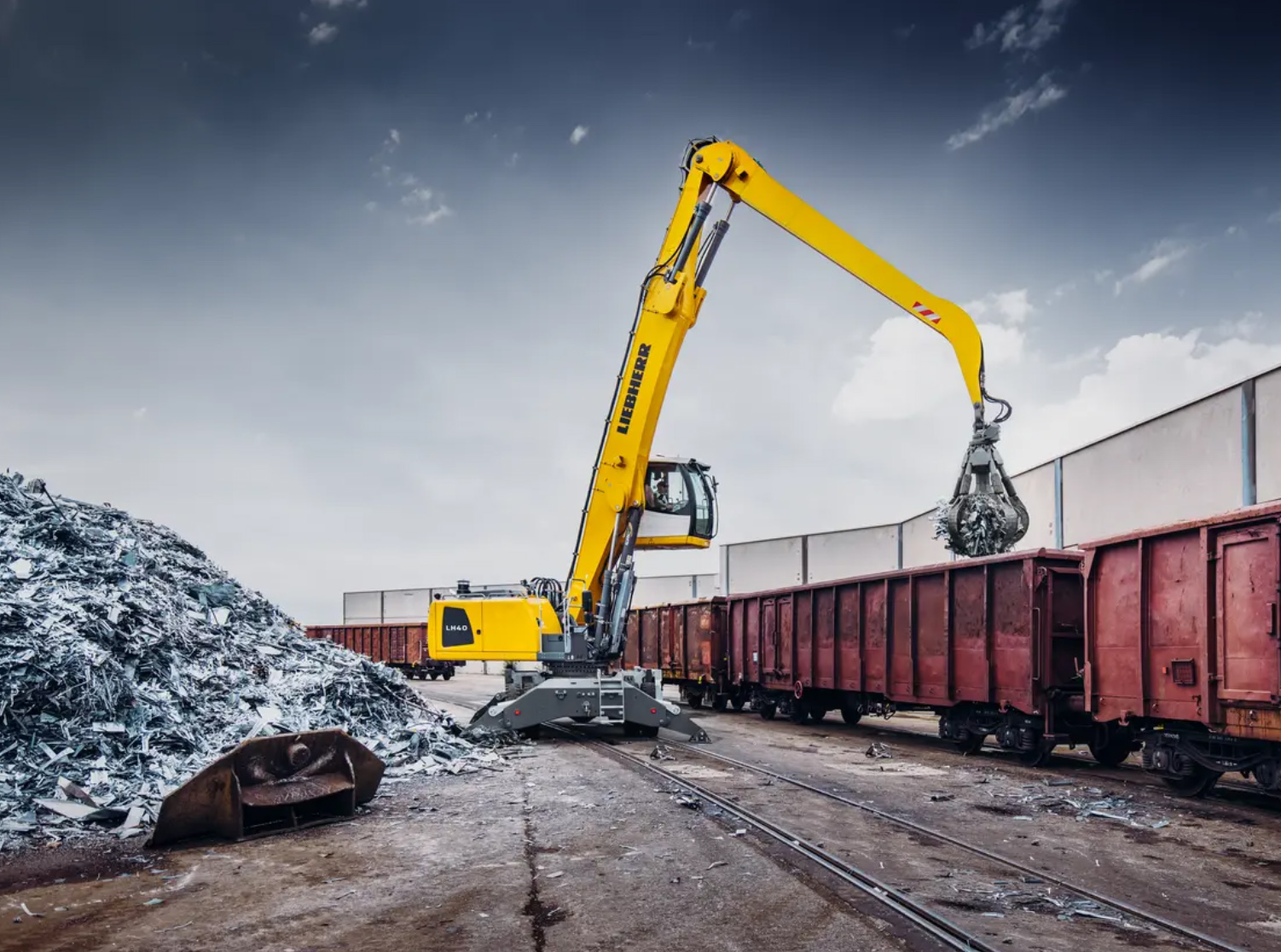

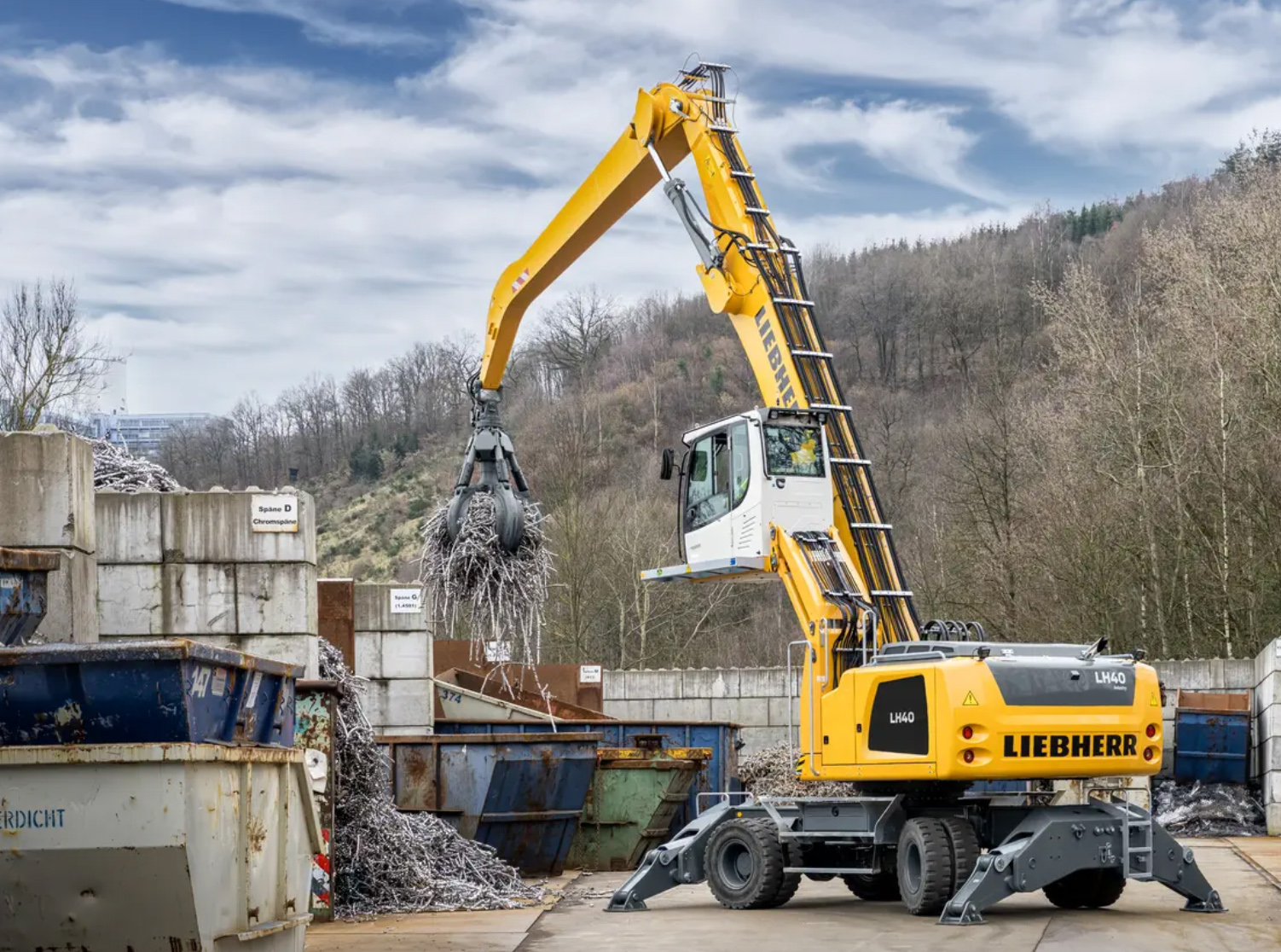

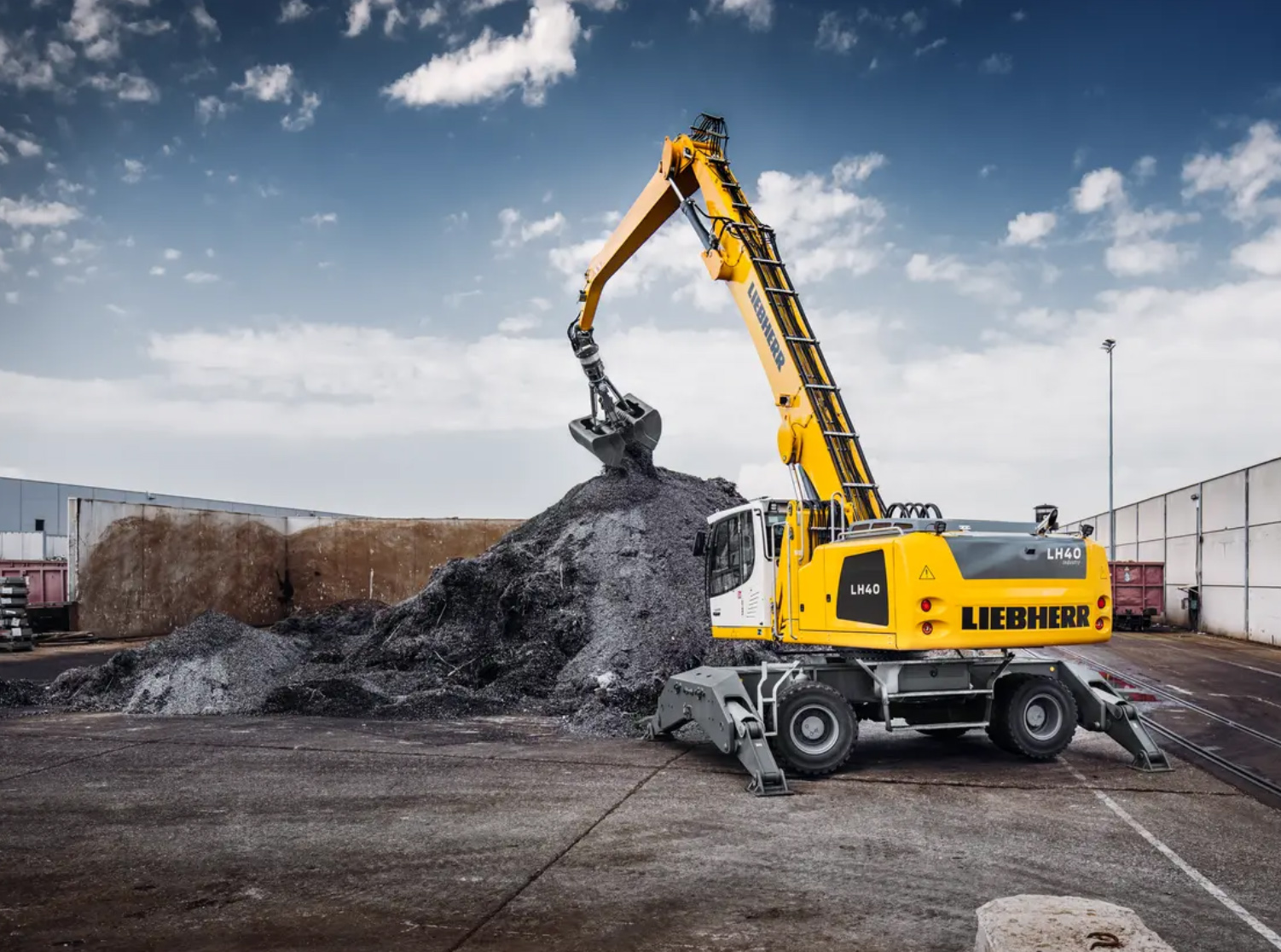

The high-performance material handler LH 40 M Industry is considered an absolute top performer in its class. With the patented ERC System (energy recovery system), the maximum handling capacity is guaranteed while at the same time lowering the Overall fuel consumption. This enables a more powerful, more homogeneous and above all faster work cycles. The attachment of the machine is available in a variety of versions and is thus always optimally matched to your respective application.

Specifications

Operating Weight 80200 lb.
Generation 6
Engine Output(ISO 9249) 155 kW / 211 HP – 155 kW / 208 hp (SAEJ1349)
Emission Stage Tier 4f
Avg. Consumption (per operating hour) 3.52 gal/h
Configuration: Compact, Crawler, Wheeled, Speciality Wheeled
Maximum Reach 52' 6'' ft in
Grapple Capacity 1.20 – 2.27 yd² (wood grab size)
Multi-tine grab capacity 0.52 – 1.44 yd³
Shells for loose material capacity 1.57 – 4.58 yd³
Sorting grab capacity 0.98 – 1.50 yd³
