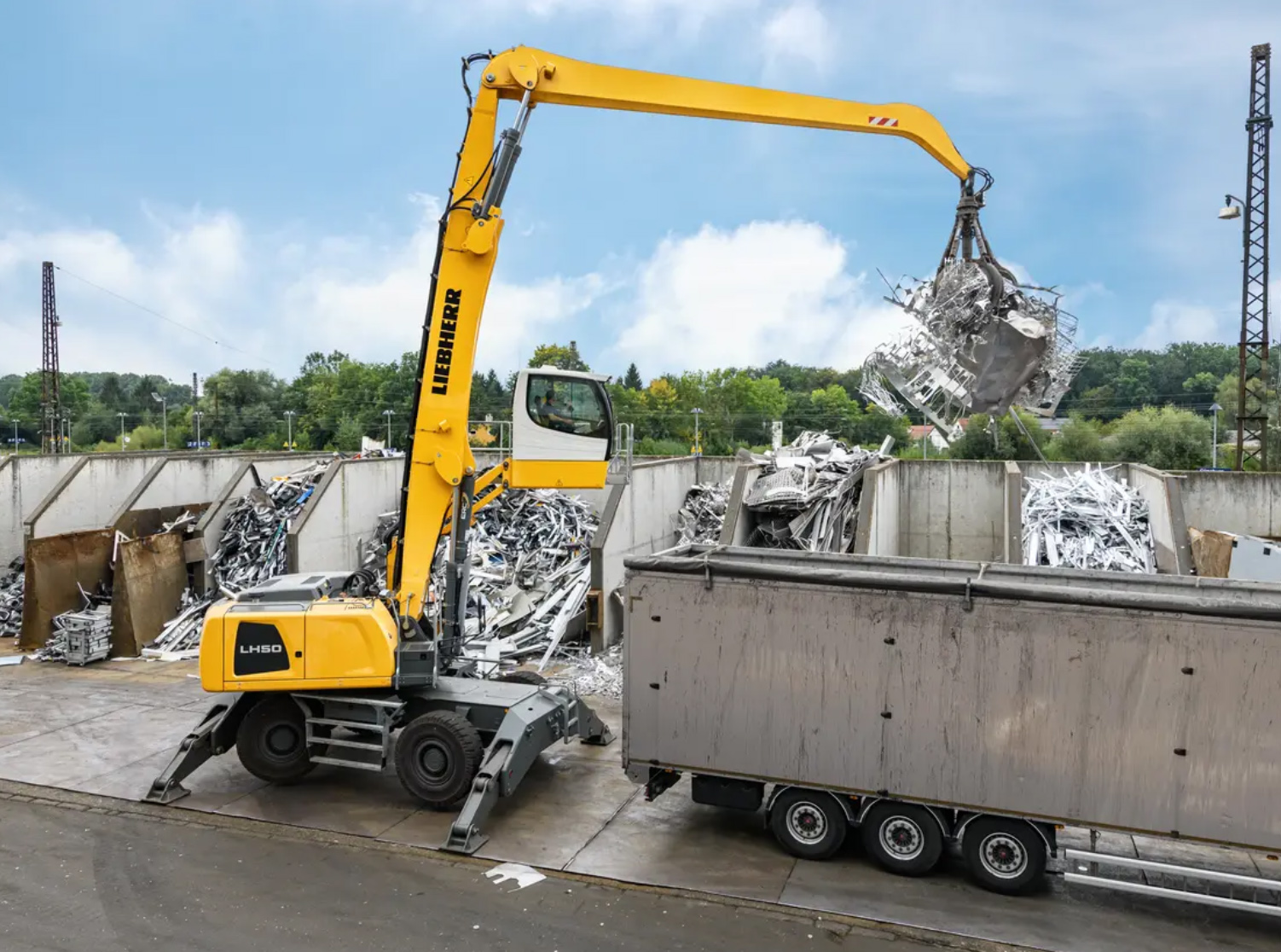

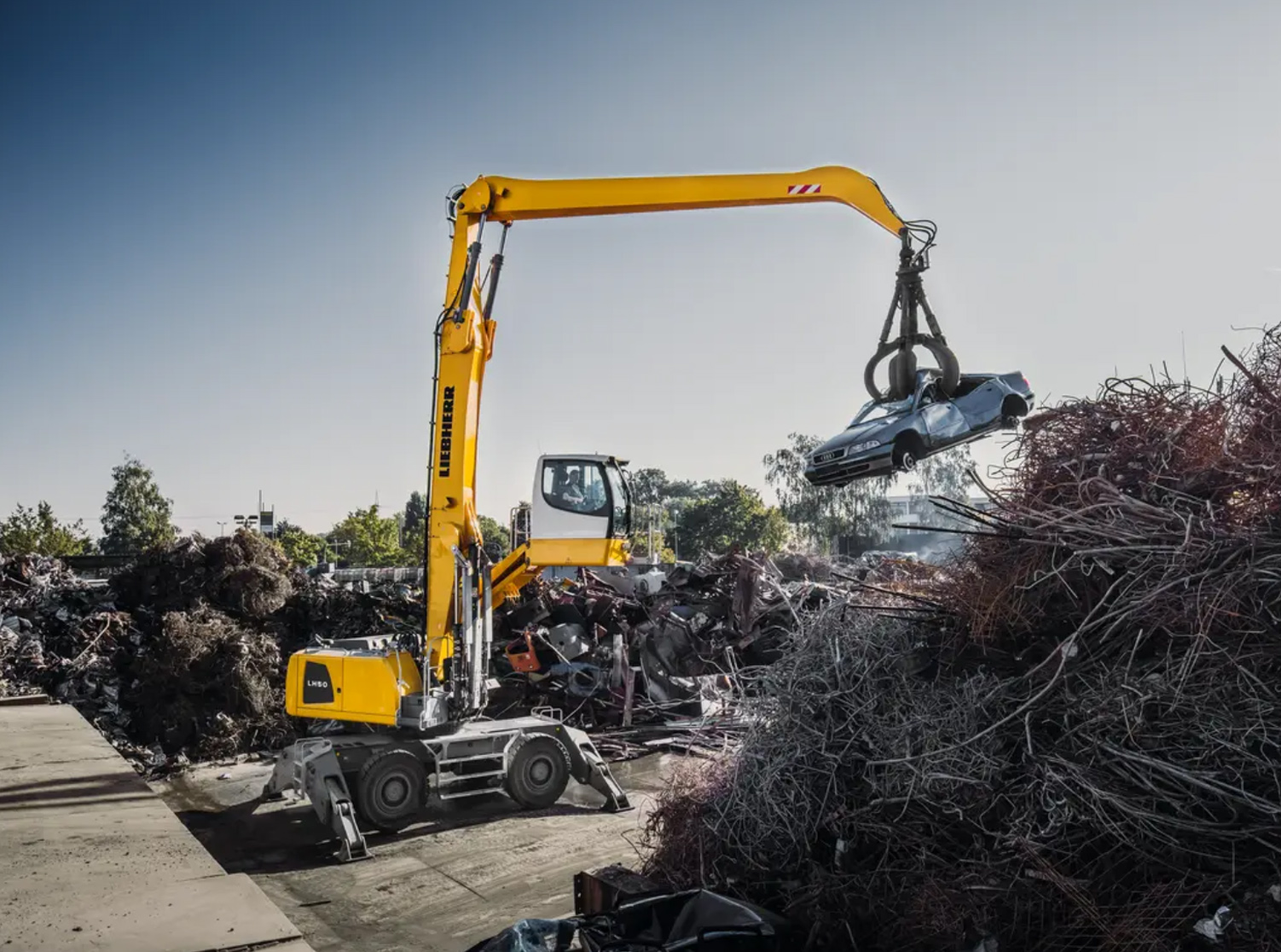

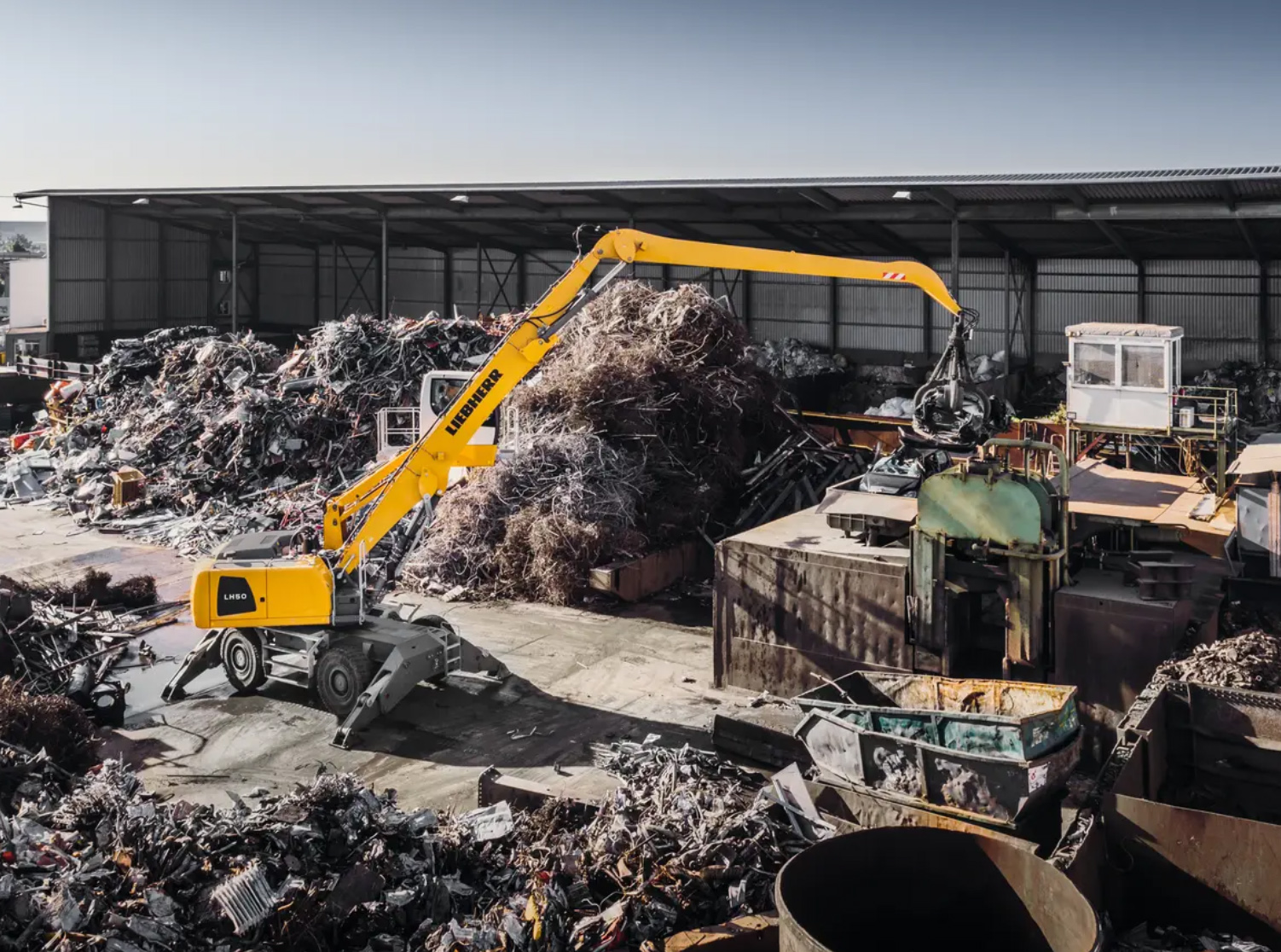

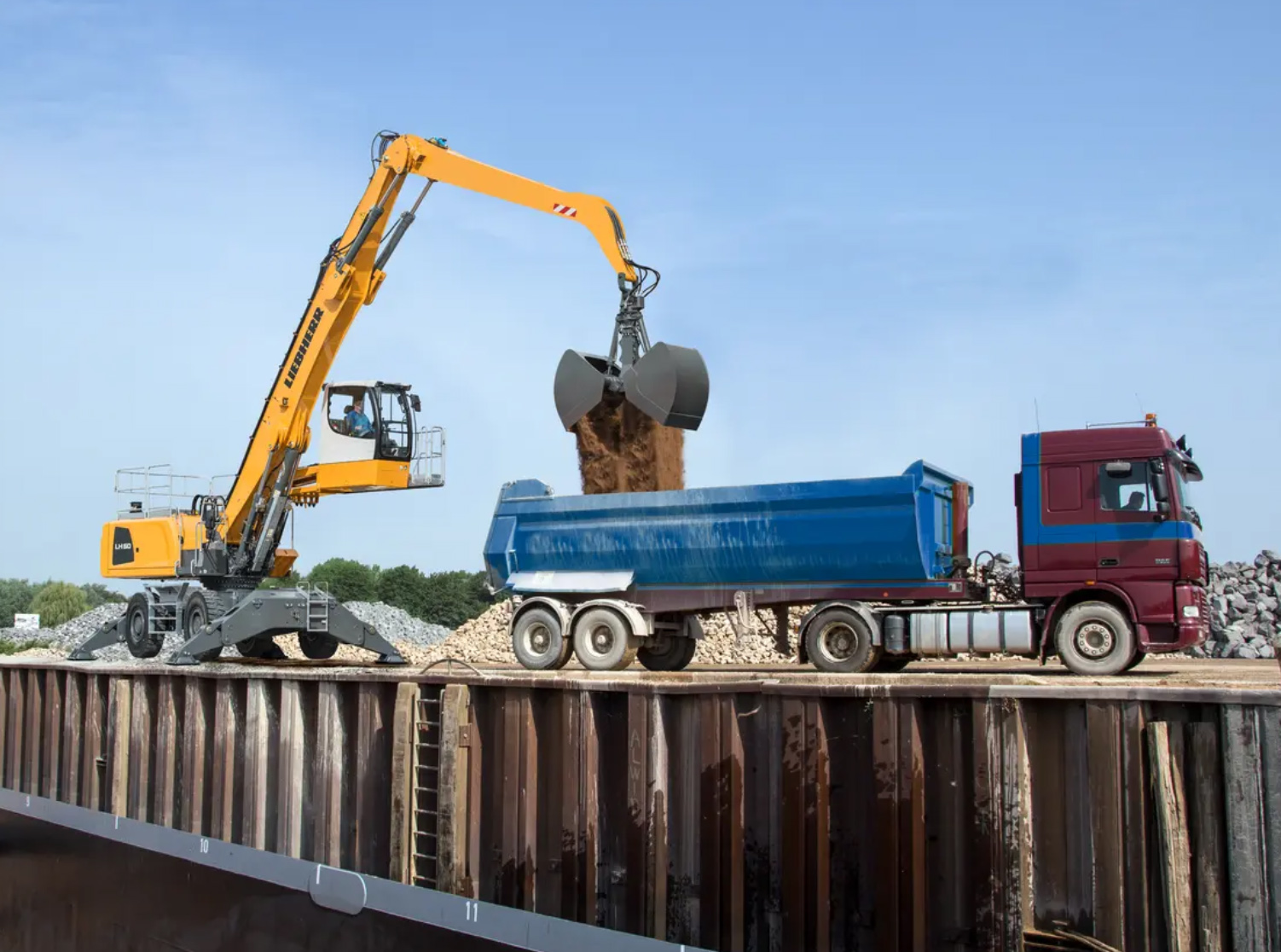

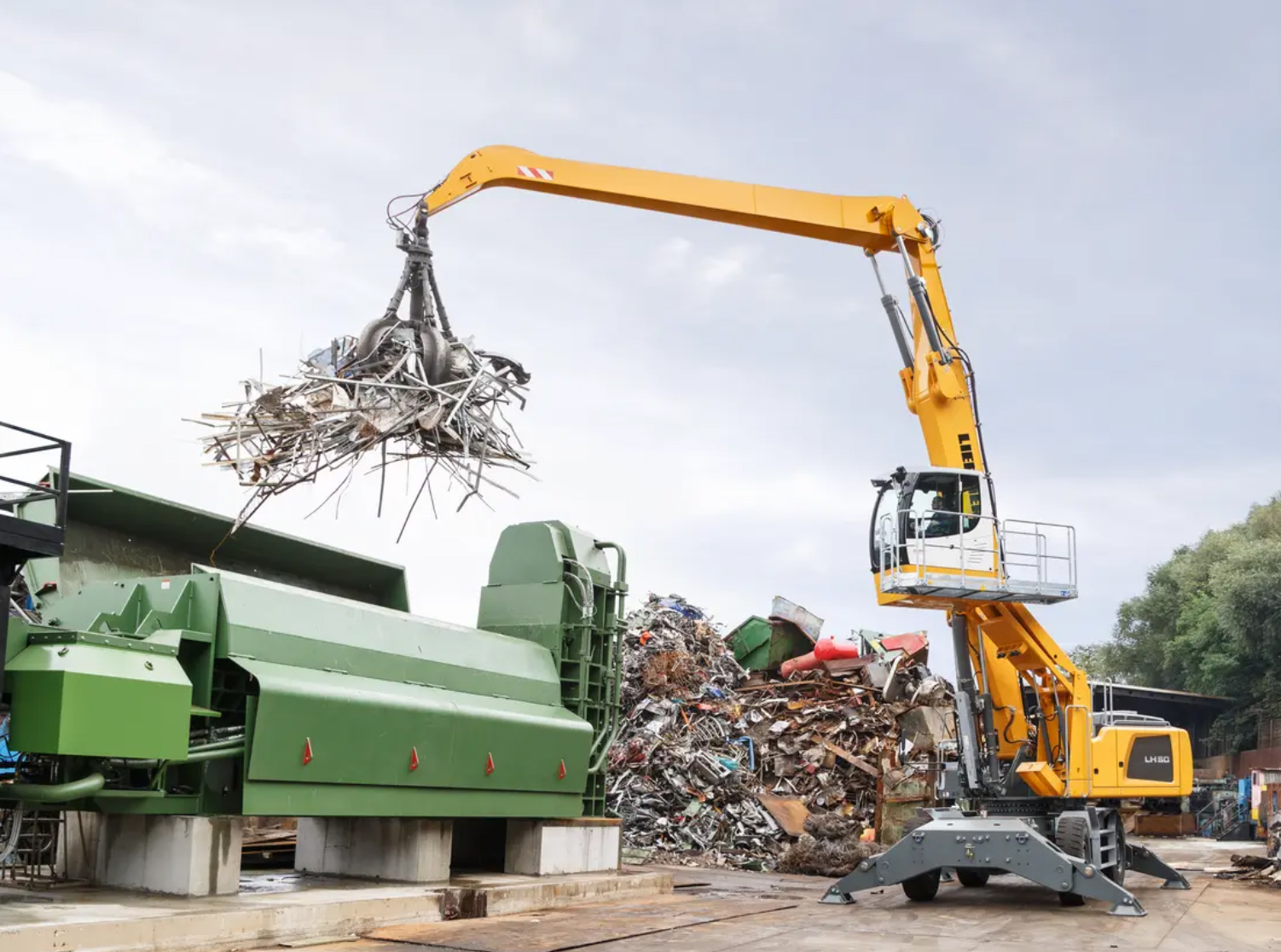

The LH 50 M Industry material handler represents efficiency and high performance. The standard Liebherr regenerative power system assures maximum handling while, at the same time, achieving lower fuel consumption. Quiet operation with the highest payload is guaranteed by the large, sturdy undercarriage. The attachment of the machine is available in a variety of versions and is thus always optimally matched to your respective application.
504-464-0431
LH 50 M Industry Litronic
Operating Weight
88200
Overview
Specifications
| Operating Weight | 88200 lb. |
|---|---|
| Generation | 6 |
| Engine Output(ISO 9249) | 155 kW / 211 HP – 155 kW / 208 hp (SAEJ1349) |
| Emission Stage | Tier 4f |
| Avg. Consumption (per operating hour) | 3.52 gal/h |
| Configuration: Compact, Crawler, Wheeled, Speciality | Wheeled |
| Maximum Reach | 59' 1'' ft in |
| Grapple Capacity | 1.20 – 2.27 yd² (wood grab size) |
| Multi-tine grab capacity | 1.05 – 1.44 yd³ |
| Shells for loose material capacity | 1.57 – 4.58 yd³ |
| Sorting grab capacity | 0.98 – 1.50 yd³ |
