HX90A – Hyundai Compact Excavator

Overview

The Hyundai HX90A model is the company’s first compact excavator included among the A-Series machines, and the first to be designated an HX model number. The largest of Hyundai’s compact excavator models, the HX90A fills a transitional spot in its overall excavator product line between the compact and full-sized models. It features an engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of this compact machine, along with its ability to work productively in confined spaces.

Performance

Performance

Yanmar Tier 4 Final Engine

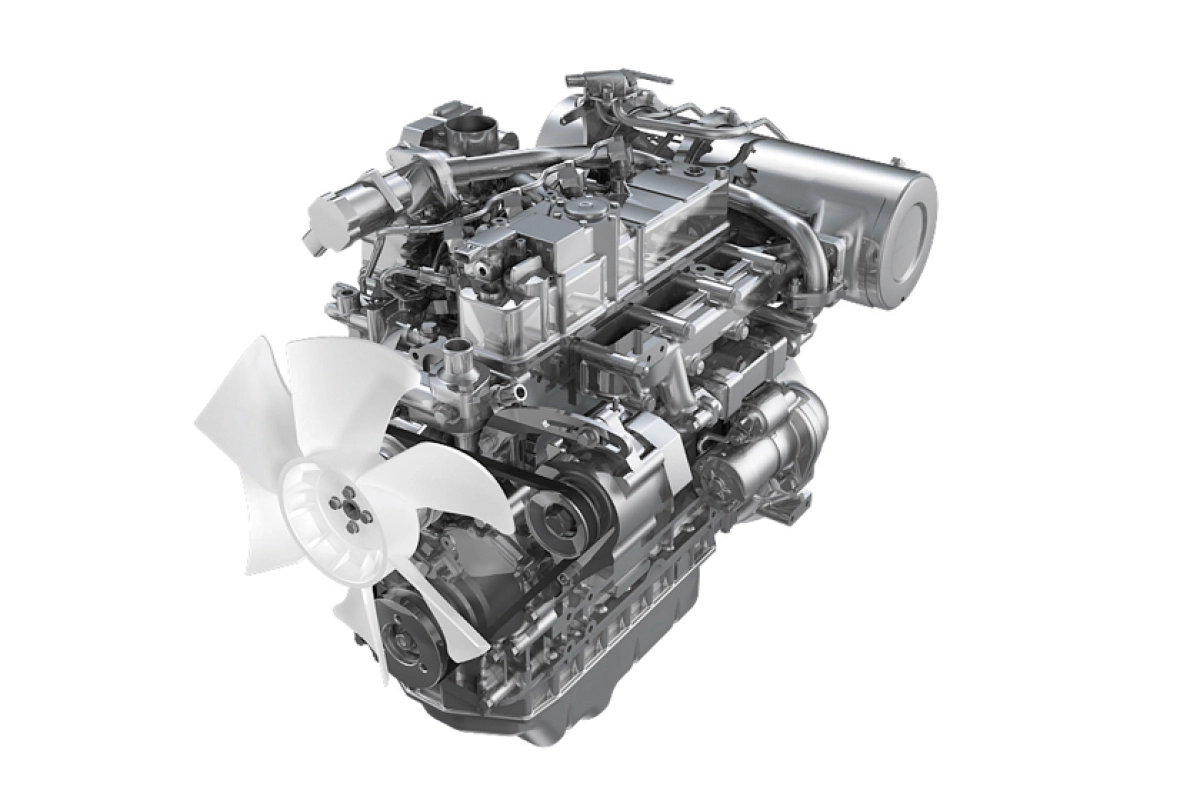

YANMAR 4TNV98C-PHYB Water cooled, 4 cycle diesel, 4 cylinders in line, direct injection, low emission engine with 65.1 HP (48.5 kW) at 2,400 rpm delivers more power and peak torque for a smooth operator experience. Maintenance has been simplified while offering an auto-regeneration feature that keeps the engine EPA certified, particulate matter clean, and the machine up and running. Features like this offer HX90A owners reduced operating costs through better fuel economy, better performance, and longer service intervals.

Boom Swing

The HX90A boom swing function is designed for efficient work in congested residential and urban areas. The boom can be offset left or right within an operating range. Plus, increased swing torque provides enhanced operating capability on the slope.

DOZER BLADE

The HX90A excavator features as standard equipment a large angled dozer blade that provides added versatility, efficiency, and stability. An optional 4-way angle dozer blade that moves up, down, left, and right is also available.

Reliability

RELIABILITY & DURABILITY

Reliability

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX90A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

Durability

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

Convenience

Convenience

MONITOR

The advanced large 7″ touch screen LCD cluster monitor allows the operator to select his personal machine preferences. Button selections are provided for auto idle shutdown mode, max power mode, and travel speed. The view from the optional rearview camera and a slope sensor can also be displayed on the monitor for additional operating safety and performance awareness. A security feature is also provided to prevent the machine from starting without a proper password.

SUSPENSION SEAT

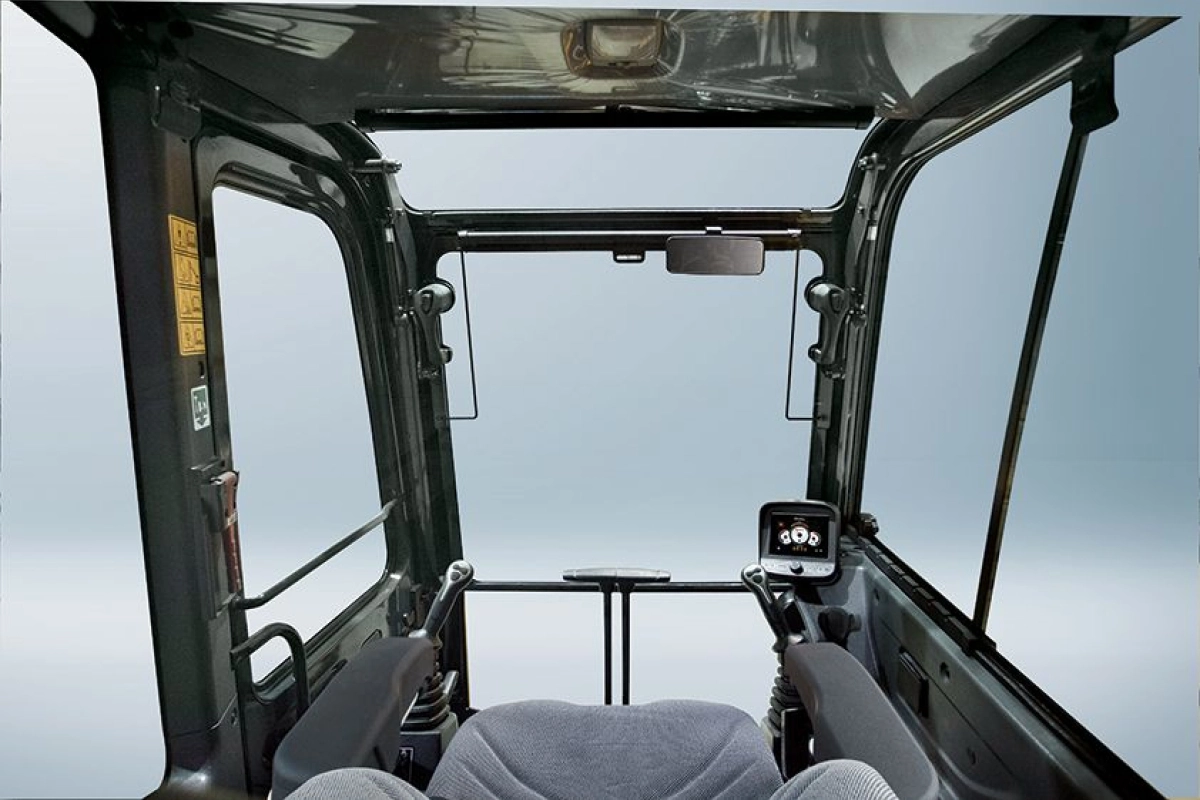

The HX90A operator’s cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable armrests and a spacious environment helps to minimize operator fatigue.

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

Serviceability

Serviceability

CENTRALIZED LUBRICATION

Centralized lubrication bank for faster, easier service and maintenance.

LONG-LIFE COMPONENTS

Hyundai compact excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear-resistant, noise-reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine downtime.

EASY ACCESS

The HX90A was built with accessibility in mind. All covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the HX90A.

DURABLE COOLER

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improved clean out and durability.

Safety

Safety

DUAL-LOCK QUICK COUPLER

The HX90A comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

OPTIONAL REARVIEW CAMERA

Hyundai’s HX90A is equipped with an optional full color, integrated rearview camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.

REINFORCED CAB STRUCTURE

Hyundai’s HX90A is tested in accordance with stringent ISO standards. The cab features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.

EXCELLENT VISIBILITY

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.

Specifications

Engine Model Yanmar 4TNV98C-PHYB
Net Power 65 hp @ 2,400 rpm
Operating Weight 20040 lb.
Bucket Capacity 0..33 yd³
Max Travel Speed 3.2 mph
Swing Speed 9.5 mph
Max. Digging Depth 15' 0.7"
Max. Digging Reach 24' 4.1"
Tail Swing Radius 5' 5.9"
Bucket Breakout Force (Iso) 13852 lb.
Arm Crowd Force (Iso) 8338 lb.
Configuration: Compact, Crawler, Wheeled, Speciality Compact
