The Hyundai HX60A is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power.
504-464-0431
HX60A
Net Power
65.9 hp @ 2,400 rpm
Operating Weight
13404
Standard Bucket
0.24 yd³
Overview
Performance
Performance
TIER 4 FINAL ENGINE
The HX60A features a diesel engine with a vertical, water-cooled 4-cycle direct injector. It has a net power rating of 65 HP (48.5 kW).
AUXILIARY HYDRAULIC FLOW
Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.
ANGLE DOZER BLADE FLOATING
Blade height is automatically adjusted by turning on dozer blade float function.
Reliability
RELIABILITY & DURABILITY
Reliability
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX60A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
Durability
Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
Convenience
Convenience
MONITOR
The advanced large 7″ touch screen LCD cluster monitor with flow rate control allows the operator to select his personal machine preferences. Button selections are provided for auto idle shutdown mode, max power mode, and travel speed.
SUSPENSION SEAT
The HX60A operator’s cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable armrests and a spacious environment helps to minimize operator fatigue.
CAB ENTRY
A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
Serviceability
Serviceability
Hi MATE TELEMATICS
Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.
Fully Accessible MCV & Engine
The HX60A cowl is a full open type, which allows for easy access to both the MCV and engine. In addition, the layout of the MCV and engine has been optimized for better serviceability.
Optimal Placement of Filters
Large engine hood and easy ground level access to daily checks and filter.
Safety
Safety
AUTO-SAFETY LOCK
If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator’s safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

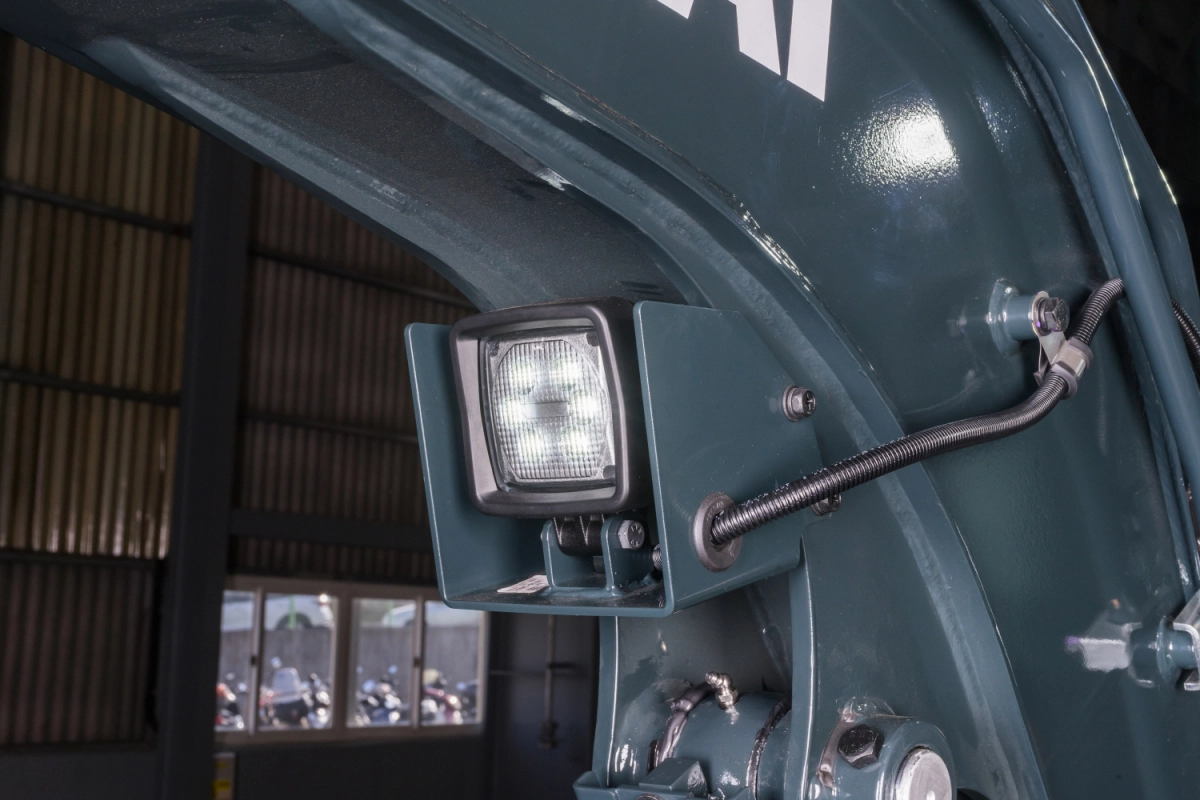

LED LIGHTING
For added safety, LED lamps are used in all the work lights. The boom work lights are recessed to help prevent damage when working.
Optional Rearview Camera
The HX60A is equipped with a rearview camera as standard with the option of a side-view camera.
Specifications
| Engine Model | Hyundai / DM02VB |
|---|---|
| Net Power | 65.9 hp @ 2,400 rpm |
| Operating Weight | 13404 lb. |
| Bucket Capacity | 0.24 yd³ |
| Max Travel Speed | 2.6 mph |
| Swing Speed | 9.4 mph |
| Max. Digging Depth | 12' 4.4" |
| Max. Digging Reach | 20' 2.1" |
| Tail Swing Radius | 5' 5" |
| Bucket Breakout Force (Iso) | 9462 lb. |
| Arm Crowd Force (Iso) | 6363 lb. |
| Configuration: Compact, Crawler, Wheeled, Speciality | Compact |
