The Hyundai HX40A is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power in confined spaces. The HX40A received the prestigious 2022 Red Dot Design Award, recognizing outstanding industrial designs worldwide, along with the HX35AZ and HX48AZ. The excavators were honored, in part, for their distinctive “tiger eye” rear light design, showcasing a perfect blend of form and function.
504-464-0431
HX40A
Net Power
37.7 hp @ 2,200 rpm
Operating Weight
9678
Standard Bucket
0.14 yd³
Overview
Performance
Performance
KUBOTA TIER 4 FINAL ENGINE
The HX40A features Yanmar 4TNV88C diesel engine with a vertical, water-cooled 4-cycle direct injector. It has a net power rating of 37.7 HP (28.1 kW).
AUXILIARY HYDRAULIC FLOW
Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.
ANGLE DOZER BLADE FLOATING
Blade height is automatically adjusted by turning on dozer blade float function.
Reliability
RELIABILITY & DURABILITY
Reliability
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX40A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
Durability
Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
Convenience
Convenience
5-INCH FULL-COLOR LCD MONITOR
The Hyundai HX40A features a 5-inch full-color LCD monitor with IP68 rating, providing operators with clear and comprehensive information for efficient machine control and monitoring during operations.
HEATING AND A/C SYSTEM
The HX-A mini excavators comes equipped with an integrated heating & air-conditioning system, providing a comfortable working environment inside the cabin in all climate conditions.

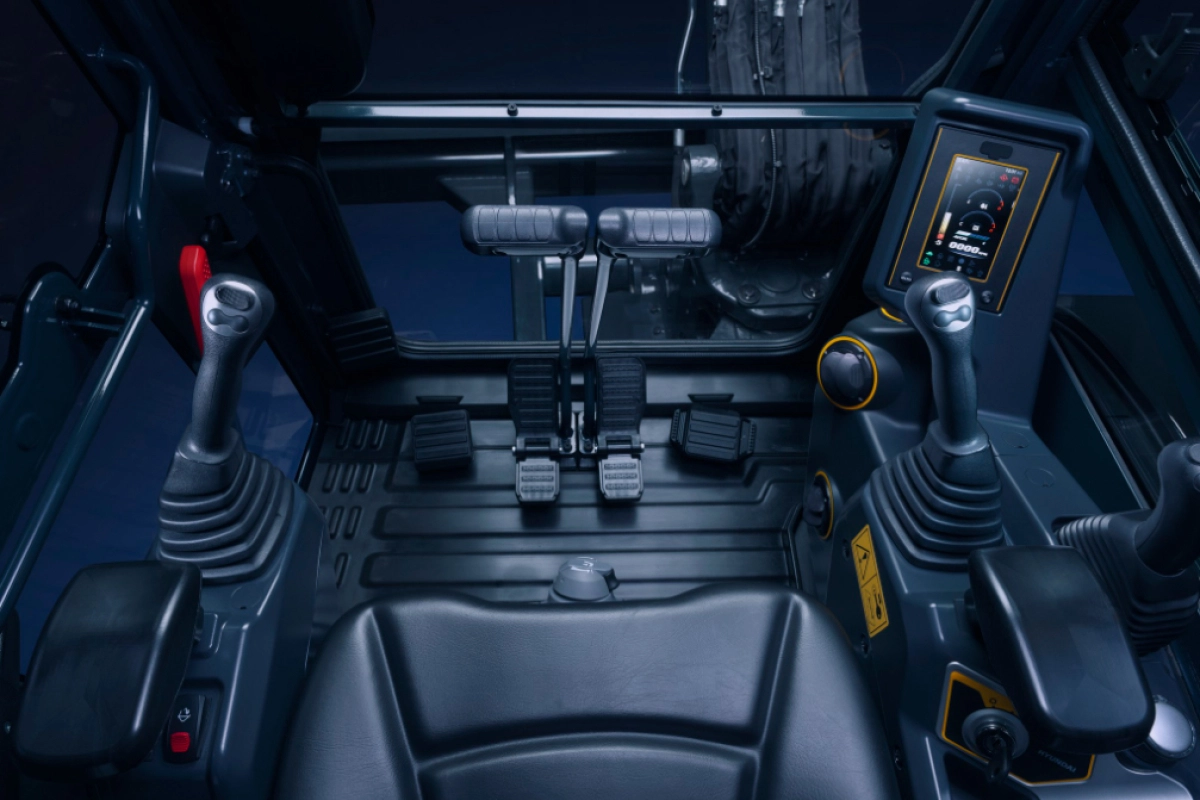

ERGONOMIC CONTROLS & SWITCHES
The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade. Easy-to-access control switches on the left side console improve operating comfort and productivity.
CAB ENTRY
A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
Serviceability
Serviceability
Hi MATE TELEMATICS
Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.
CENTRALIZED LUBRICATION
Centralized lubrication bank for faster, easier service and maintenance.
Safety
Safety
AUTO-SAFETY LOCK
If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator’s safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

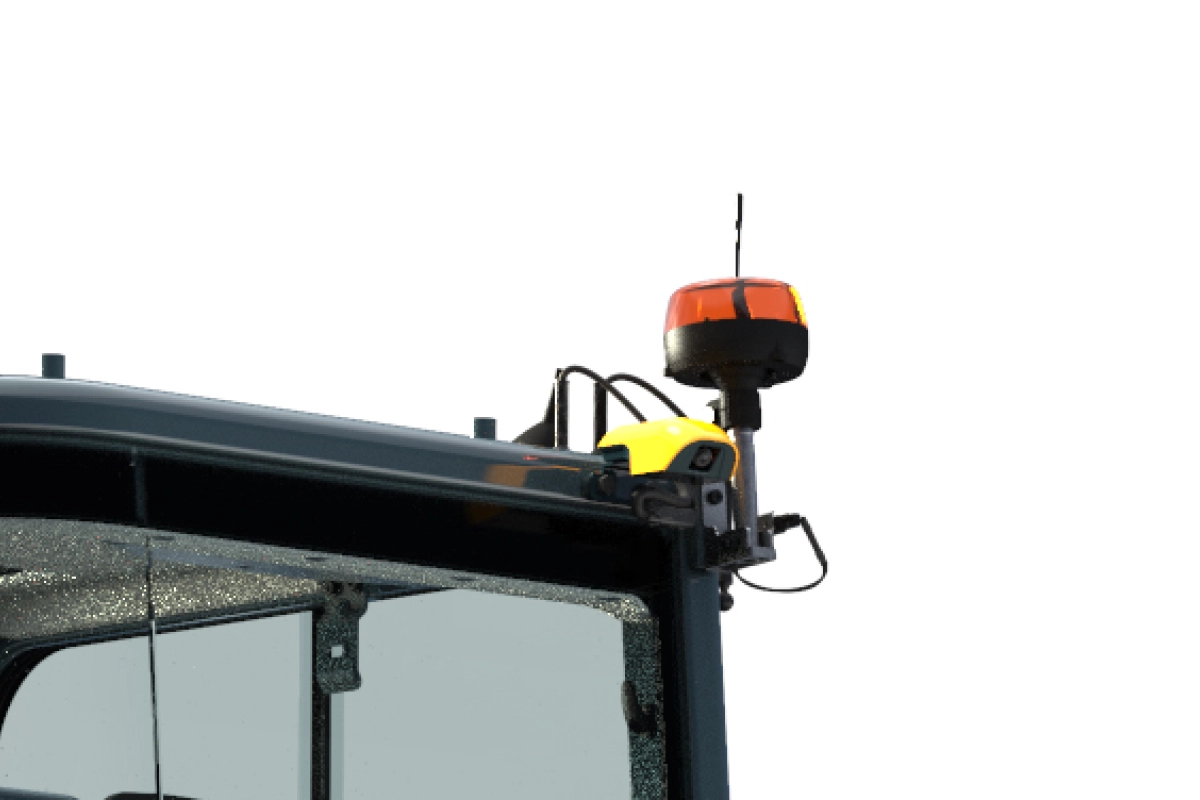

BEACON LIGHT
The HX17A can be equipped with a beacon light option.
EMERGENCY STOP SWITCH
The HX17AZ includes an emergency engine stop switch to ensure the safety of the operator and those around the machine.
REINFORCED CANOPY STRUCTURE
The canopy features a reinforced pillar design that complies with TOPS (Top Over Protection System) and FOG (Falling Object Guard) level 1 ISO standards.
Specifications
| Engine Model | Yanmar 4TNV88C |
|---|---|
| Net Power | 37.7 hp @ 2,200 rpm |
| Operating Weight | 9678 lb. |
| Bucket Capacity | 0.14 yd³ |
| Max Travel Speed | 3.0 mph |
| Swing Speed | 9.9 mph |
| Max. Digging Depth | 11' 9.3" |
| Max. Digging Reach | 18' 8" |
| Tail Swing Radius | 4' 3.2" |
| Bucket Breakout Force (Iso) | 8053 lb. |
| Arm Crowd Force (Iso) | 4206 lb. |
| Configuration: Compact, Crawler, Wheeled, Speciality | Compact |
